As the name implies, American Standard® Heating & Air Conditioning's ForeFront™ Platinum and Gold Series air handlers lead the industry in technologies and engineering that ensure whole-home comfort. Our exclusive Vortica™ blowers circulate clean, comfortable air quietly and efficiently while all-aluminum epoxy-coated coils offer better durability and odor prevention than standard copper and aluminum coils. The cabinets are constructed with fully enclosed insulation and double walls to minimize energy loss, noise, and airborne dust, as well as mold and mildew from condensation.

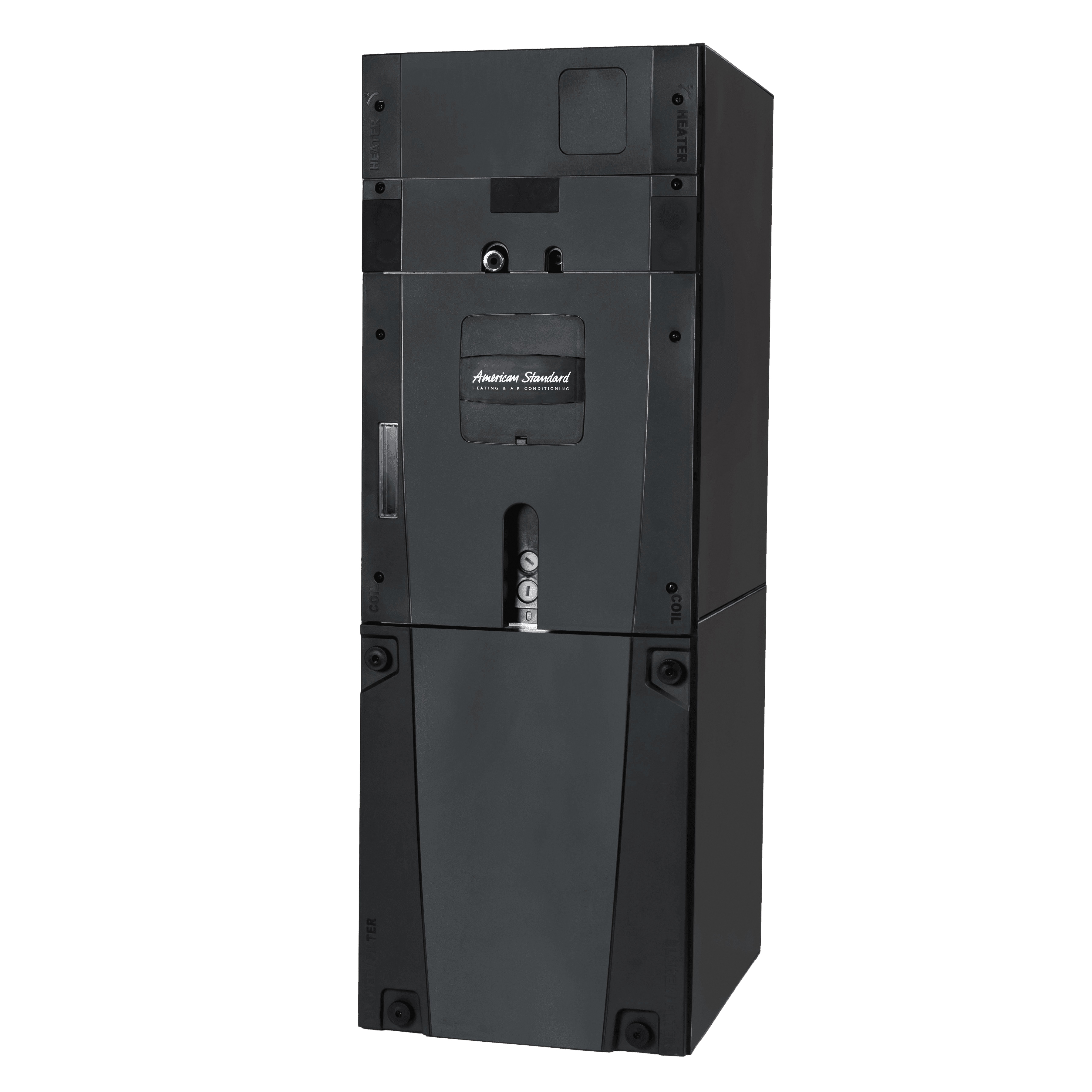

American Standard® Variable Speed Air Handler, Platinum 5TAMX Series, Model: 5TAMXC03A, 2.5 ton Nominal Capacity, 18000 to 30000 Btu/hr, 208-230 V, 3.9 A, 60 Hz, 1 ph Phase, 1050 rpm Rotational Speed, 1000 cfm, Downflow, Horizontal, Upflow, Connection Type: NPT, R-454B Refrigerant, 3/4 in Connection, 3/8 in Liquid Line, 3/4 in Suction Line, ECM Motor, Foam, 55-3/4 in H x 21-1/4 in W x 21-3/4 in D, Additional Information: 11 in Dia x 10 in W Direct Drive Centrifugal Fan, EEV Flow Control
- Series Platinum 5TAMX Series
- Tonnage 2.5 Tons
- Suction Line Size 3/4 in
- Amperage Rating 3.9 A
- Voltage Rating 208-230 V
- Refrigerant Type R-454B
- Nominal Capacity 2.5 ton
Catalog
- This exceptional air handler is equipped with American Standard Link® communicating technology that can provide homeowners with more in-depth performance information about their HVAC system.
- Enjoy highly efficient and effective variable speed technology with this air handler. A variable speed Vortica™ blower motor works to circulate the air in exactly the way your home needs it.
- The American Standard Link® air handler is built to last for years to come. Featuring fully enclosed insulation that eliminates the possibility of loose fibers, a sweat eliminating design, and an epoxy coated coil, this is an air handler you can trust.
- This air handler works with American Standard Diagnostics, which allows your dealer (with your permission) to remotely diagnose potential issues with your HVAC system, plus provides perks like alert code notifications.
- Fully enclosed insulation eliminates the possibility of loose fibers
- Sweat eliminating design
- Epoxy coated coil
- Variable-speed Vortica™ blower motor
- Highly efficient variable-speed technology
- Unique modular design
- Alert code notification through smart thermostat or diagnostic mobile app
